Item No :
RK5HS RK5HOrder(MOQ) :
500Product Origin :
CHINAColor :
BLACKWeight :
25gUniversal receptacle US industrial Socket WONPRO

Function Introduction:

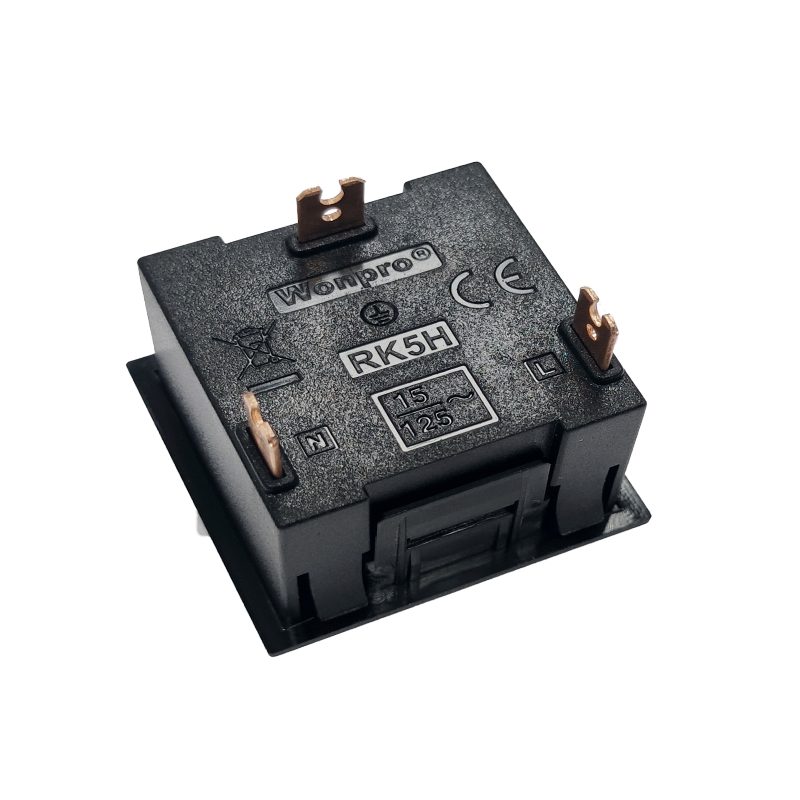

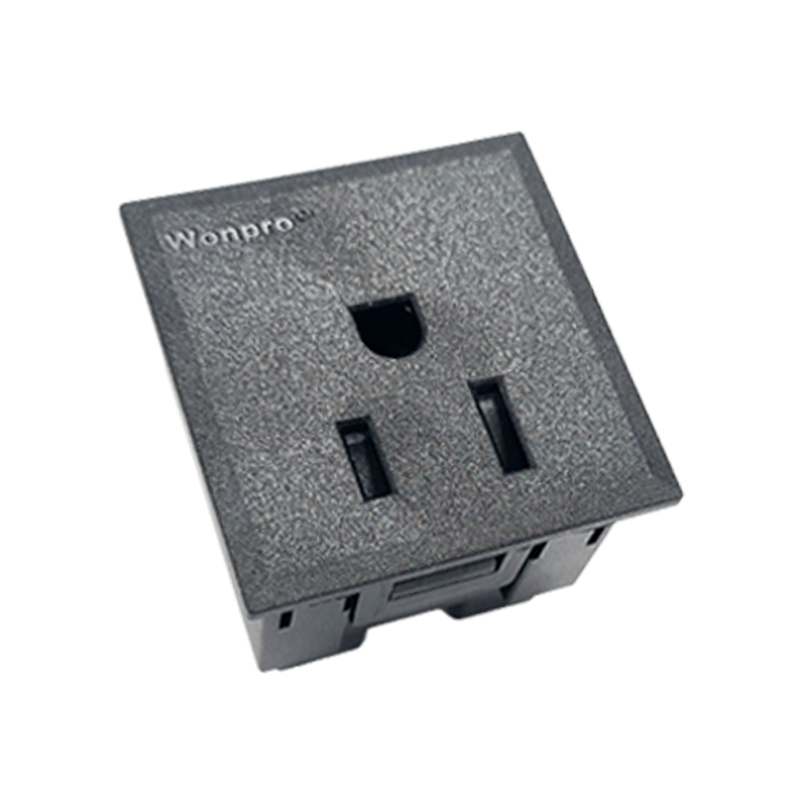

1. Card-type US Standard Socket, Bulkhead mounting.
2. The wiring hole and the compression hole can be used interchangeably.
3. The maximum applicable wire size is 2.5㎜².
Industrial-Grade Power Adaptor Series - Specification Table
| Type | socket | Size |
40.4*42*35.7mm |
| Model |
RK5HS(with shutter) RK5H(without shutter) |
Rated |
15A 125V~ |
| Output | 1650W | Certification | CE |
| Suitable for Area | Tai wan area , Japan, U.S.A. Canada plugs |
Operating Temperature | -5℃~40℃ |

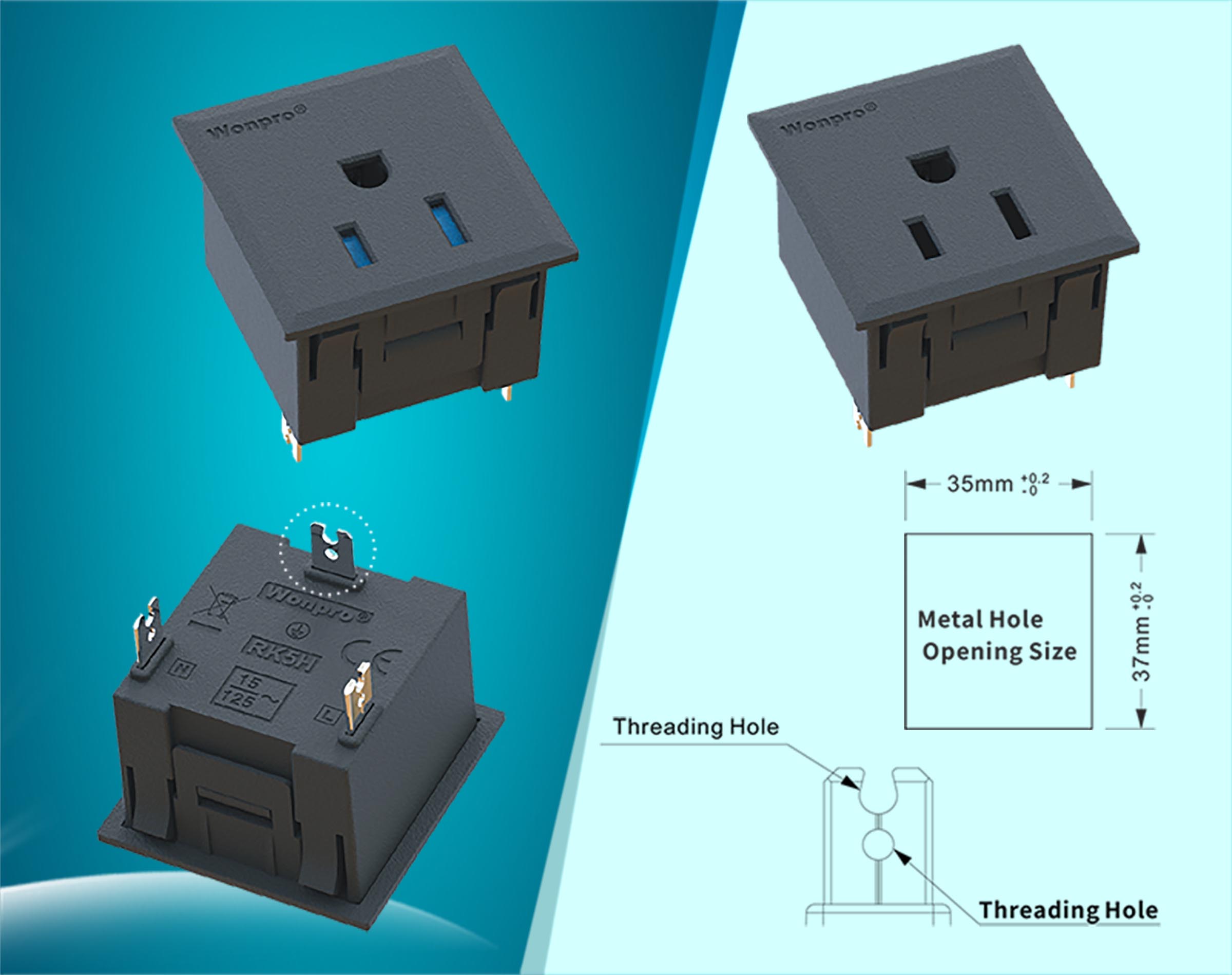

| Suitable for sheet metal thickness |
1-2mm |
Material | PC |
![]() |
![]() |

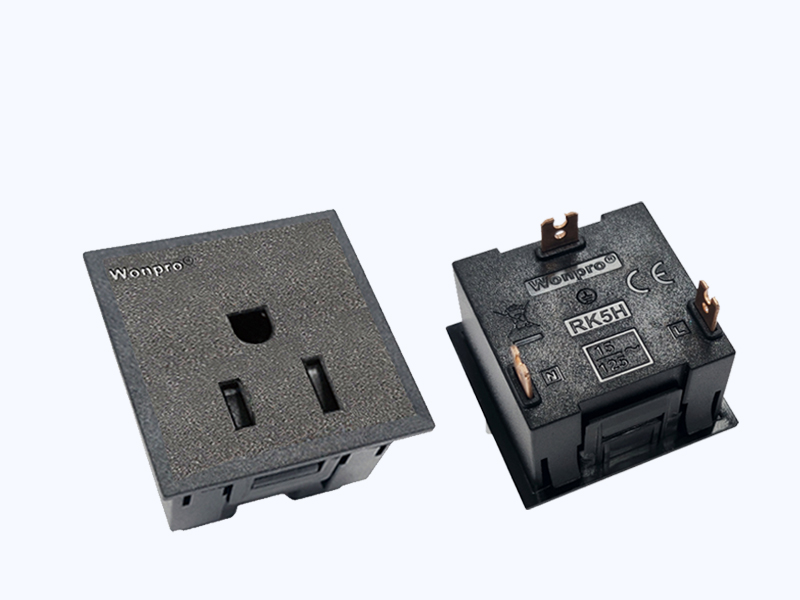

| RK5HS (with shutter) | RK5H(without shutter) |
|
Product Introduction: |

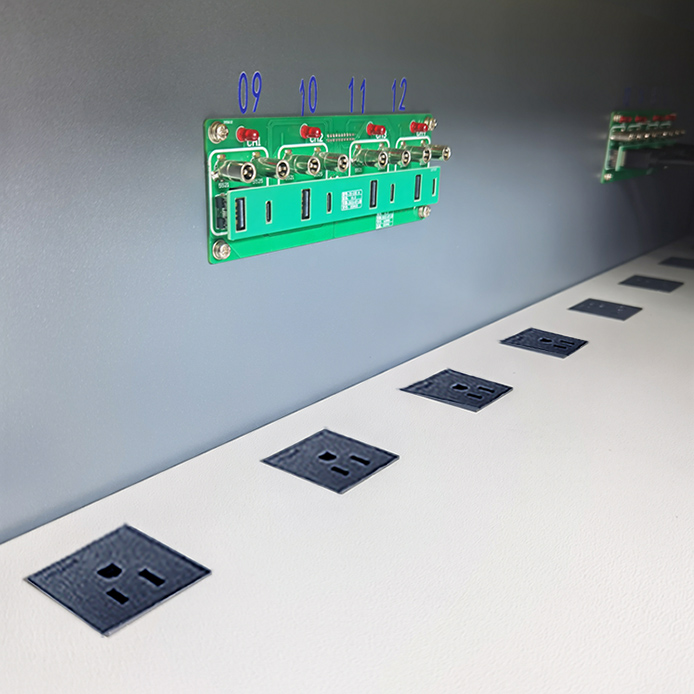

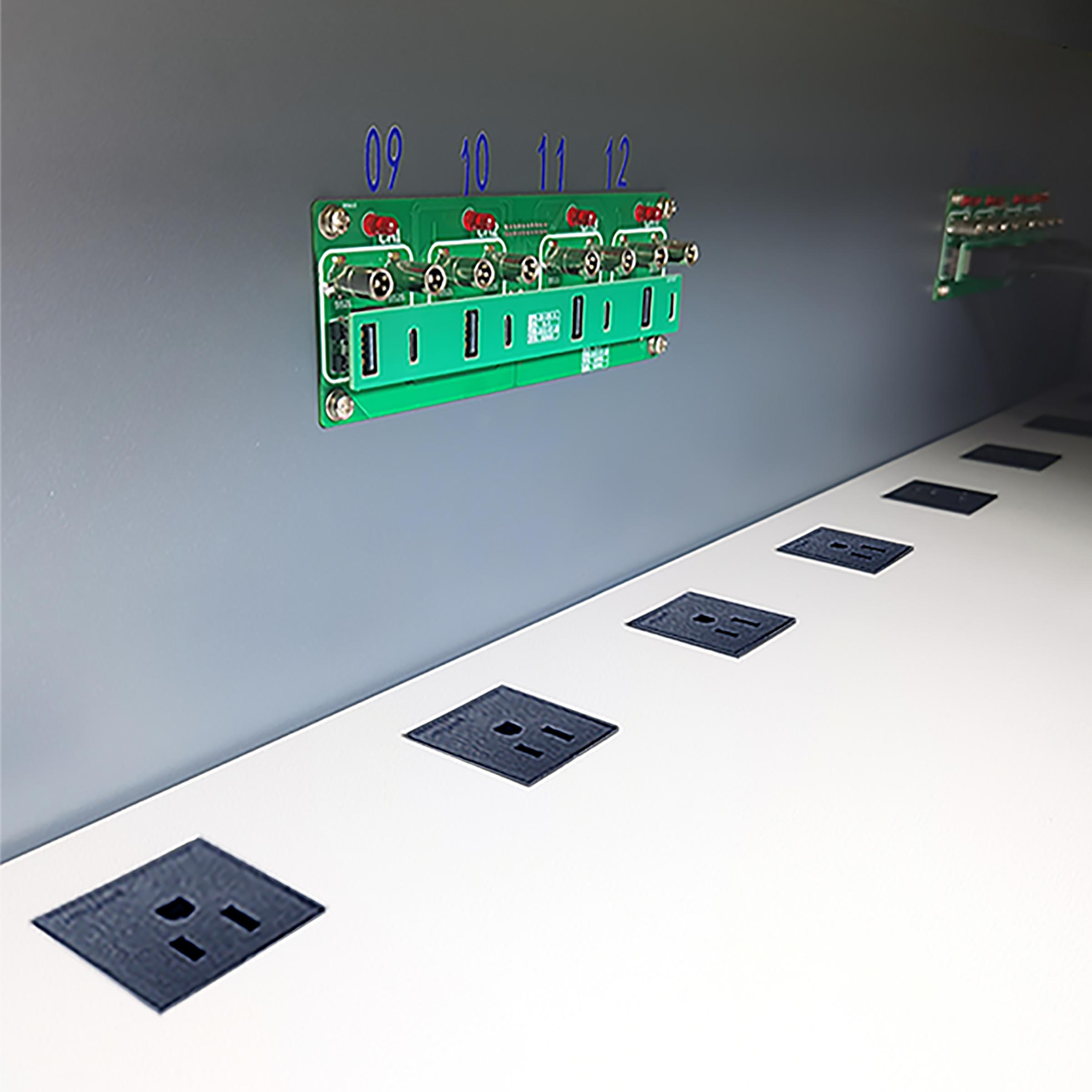

Preview of usage scenarios
? Industrial Workshops & Machinery
Perfect for powering 15A tools (CNC machines, welders, assembly line motors) via workshop distribution boxes or equipment-integrated setups.
?️ Data Centers & Server Racks
Serves as a rack-mounted power module for servers, switches, and UPS systems; secure latching prevents accidental plug disconnection.
? Commercial & Retail Facilities
Ideal for powering American-standard kitchen appliances, POS systems, and display equipment in restaurants, malls, and retail stores.
?️ Construction & Outdoor Jobsites
Reliable power interface for temporary lighting, portable generators, and construction tools in outdoor/rough operating conditions.
