Wonpro Industrial Universal Panel Socket – Screw-Lock Fast Install, 5-Hole Hidden Power Module Socket

Wonpro Industrial Universal Panel Socket – Screw-Lock Fast Install, 5-Hole Hidden Power Module Socket

Wonpro Industrial Universal Panel Socket—the heavy-duty, fast-install power solution built for industrial, commercial, and high-demand environments. Designed as a card-style embedded power module, this socket features a universal 5-hole (hidden) design that accepts plugs from 200+ countries (US, EU, UK, AU, etc.)—eliminating the need for multiple socket types in mixed-equipment setups.
Its screw-locking fast-install system cuts setup time by 40% (no complex tools required), while the built-in dust cover protects internal components from debris, moisture, and industrial contaminants (critical for factory floors or workshop use). Crafted with a flame-retardant PC V1 shell and high-precision copper contacts (10A/250V rating), it delivers stable, safe power for heavy tools, office equipment, or industrial machinery—far more durable than standard commercial sockets.
Unlike generic panel sockets, this unit combines universal compatibility, industrial-grade protection, and seamless card-style embedding (flush-fit into equipment panels or wall enclosures) for a clean, professional finish. It’s the all-in-one power module for spaces that demand reliability, versatility, and speed.
  • Item No :

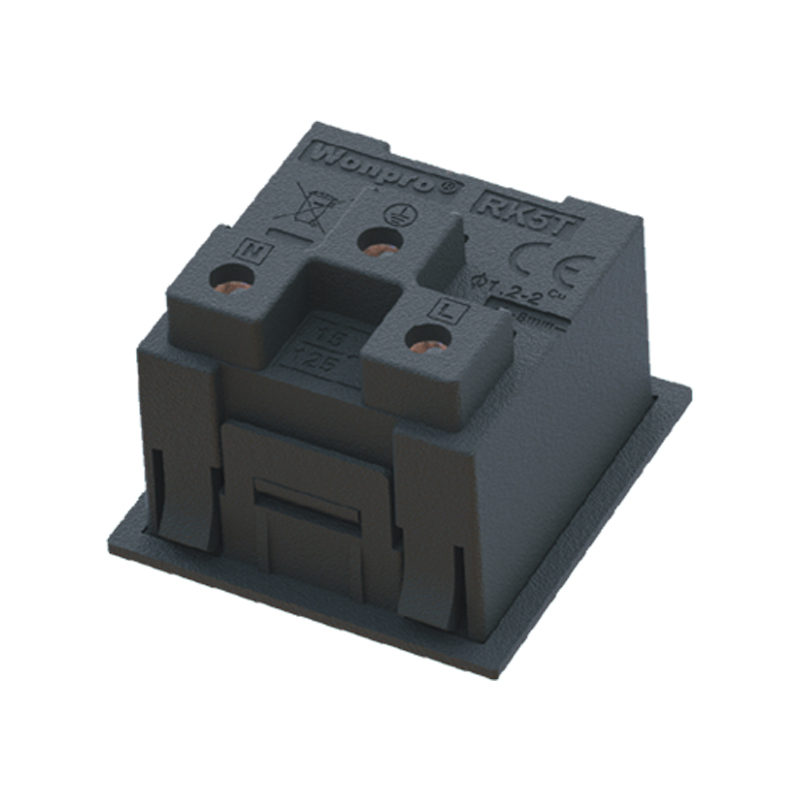

    RK5TS RK5T
  • Order(MOQ) :

    500
  • Product Origin :

    CHINA
  • Color :

    BLACK
  • Weight :

    25g
  • Product Details
Universal receptacle US industrial Socket wonpro
Universal 5-Hole Hidden Design: Accepts plugs from 200+ countries (US/EU/UK/AU) for mixed-equipment setups (no adapter clutter).
Screw-Locking Fast Installation: Cuts setup time by 40% with a secure screw-mount system (no specialized tools for industrial/commercial installs).
Industrial-Grade Dust Cover: Built-in cover shields contacts from debris, moisture, and contaminants (ideal for factories, workshops, or outdoor enclosures).
Flame-Retardant & High-Precision Build: PC V1 shell + copper contacts (10A/250V) deliver safe, stable power for heavy tools/machinery.
Card-Style Embedded Fit: Flush-mounts into equipment panels or wall enclosures for a clean, professional finish (no protruding components).
Long-Lasting Durability: Resists impacts, heat, and wear (outperforms standard commercial sockets in high-demand environments).


Function Introduction:
Card-type multi-country socket, Bulkhead mounting.
 Lock wire quick connect.
 Suitable for 2.5 square solid or stranded wires.
Screw anti fall design.






Industrial-Grade Power Adaptor Series - Specification Table

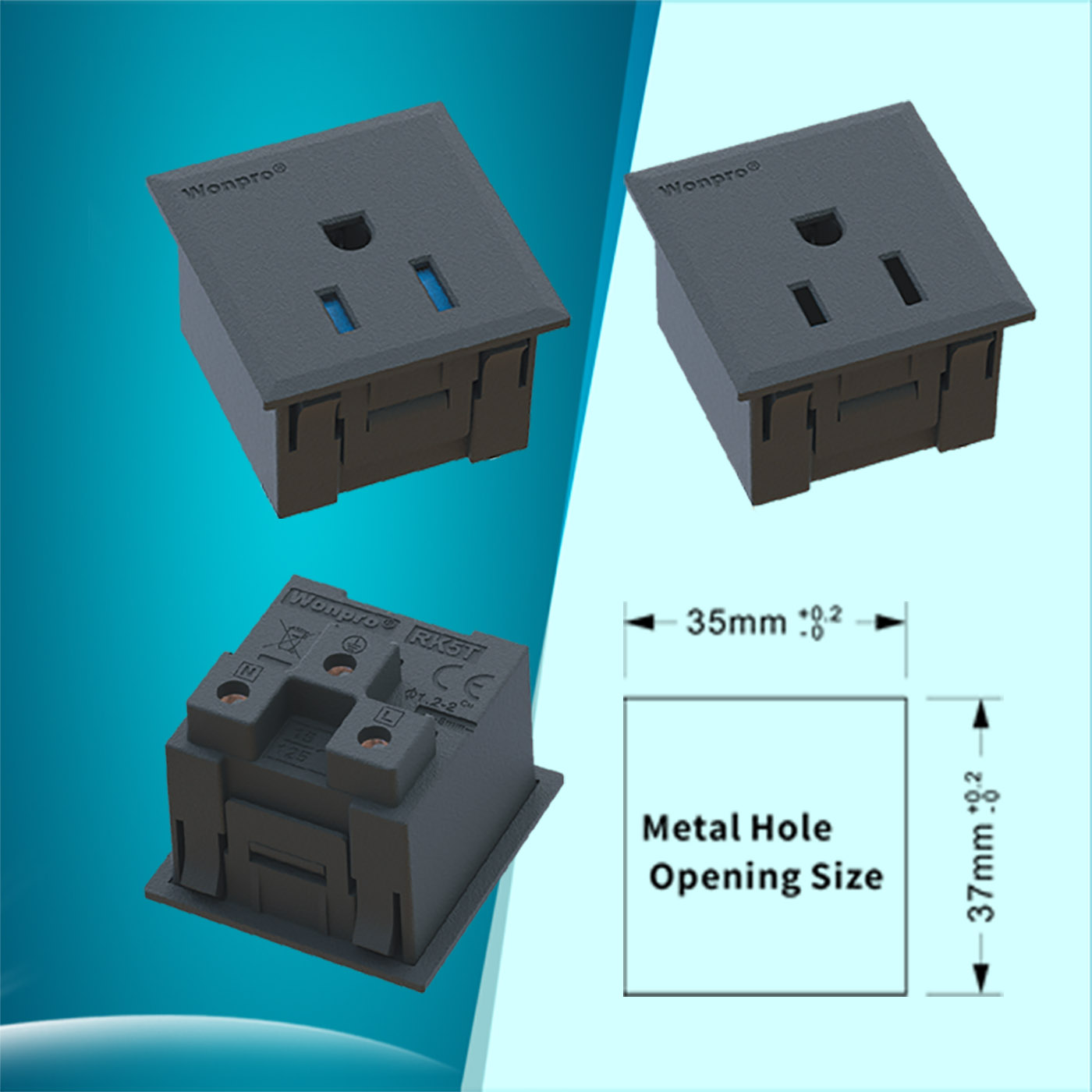

type socket Size
40.4*42*35.7mm
Model

RK5TS(with shutter)

RK5T(without shutter)

Rated
15A 125V~
Output 1650W Certification CE
Suitable for Area Tai wan area, Japan, U.S.A. Canada plugs
Operating Temperature -5℃~40℃
Suitable for sheet metal thickness 1-2mm
Material
PC

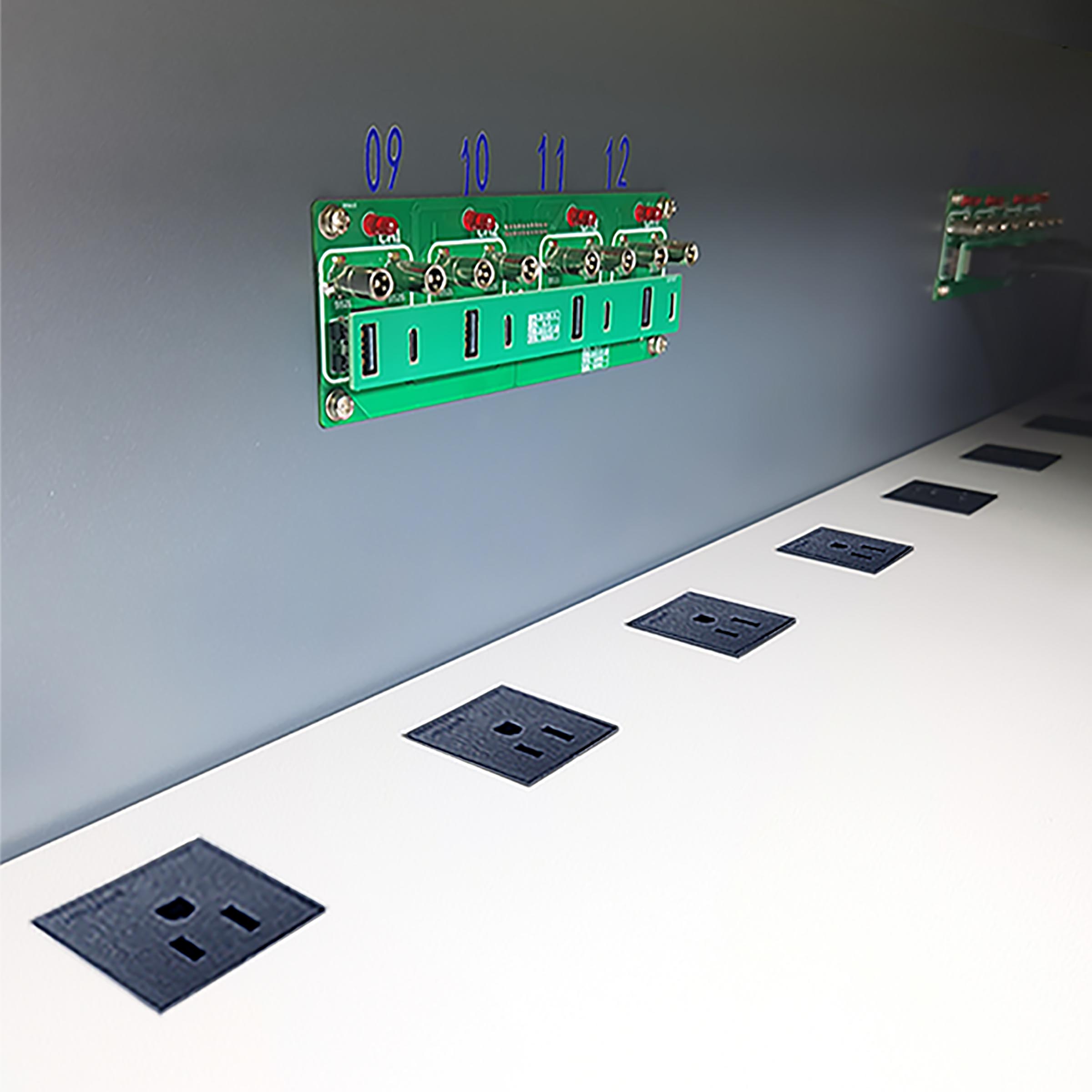

Wide Application Scenarios

  • Factory Equipment Panels: Power tools/machinery with universal plug compatibility (dust cover protects from workshop debris).
  • ?️ Workshop Wall Enclosures: Install in workbenches for mixed US/EU tool charging (no adapter clutter).
  • Office Equipment Racks: Embed into server cabinets for universal power access to global electronics.
  • Vehicle/Marine Enclosures: Dust-proof design works for RV, boat, or construction vehicle power setups.
  • Retail Display Fixtures: Flush-mount into kiosks for universal device charging (clean, customer-friendly finish).
  • ?️ Outdoor Utility Enclosures: Protect contacts from moisture/dirt in garden or construction site power boxes.

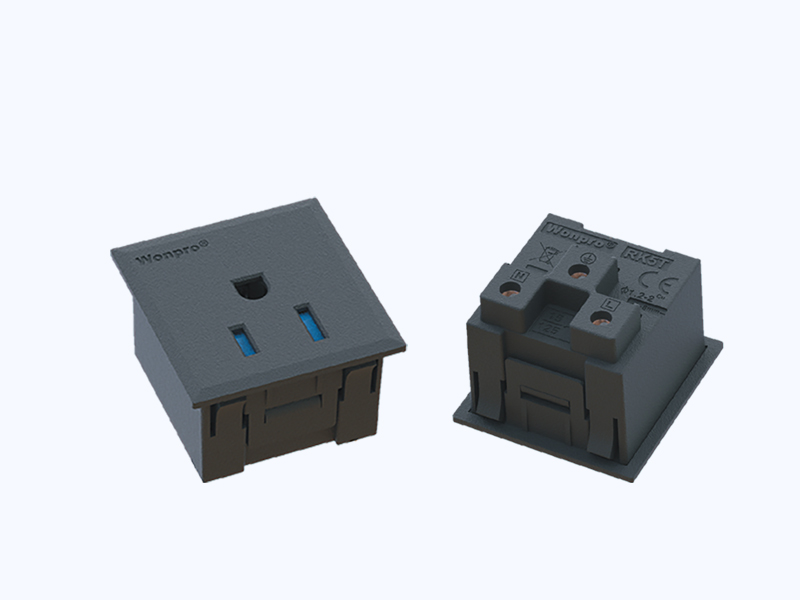

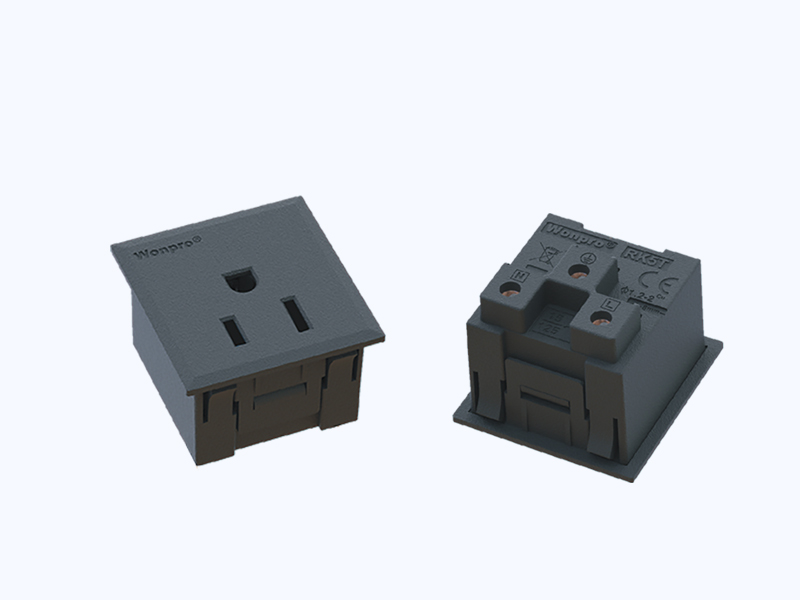

RK5TS RK5T








   This universal industrial socket is the "must-have power staple" for workshops, server rooms, and job sites:
  • Fits all plug types across scenarios
  • High-strength flame-retardant shell resists heavy-duty impacts
  • Built-in safety protection for steady power to all devices
  • Plug-and-go reliability

   Big capability in a small footprint:
  • Compact design fits all equipment panels
  • Multi-spec outlets work with any plug—one socket powers everything from precision instruments to temporary machinery
  • Built-in overload/short-circuit protection
  • Durable, worry-free: your go-to power solution for industrial scenarios.
